PosiTector Replica Tape Reader

The PosiTector RTR Replica Tape Reader by DeFelsko is a Digital Spring micrometer that measures and records peak to valley surface profile height using replica tape

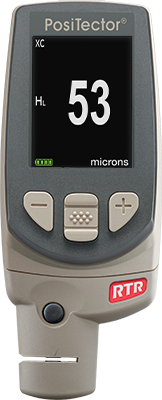

PosiTector RTR H


  • Ready to measure – no calibration adjustment required for most applications
  • Produces a more accurate peak-to-valley height measurement
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

Simple

  • One Handed Navigation
  • RESET feature instantly restores factory settings
  • Automatically subtracts the 50.8 μm (2 mil) incompressible substrate from all readings
  • Minimises inspector workload by reducing the number of replicas needed to ensure accuracy

Durable

  • Solvent, acid, oil, water and dust resistant – weatherproof
  • Rugged indoor/outdoor instrument – ideal for field or shop use
  • Shock-absorbing, protective rubber holster with belt clip
  • 2 year warranty on body AND probe

Accurate

  • Measures height (H) and linearized height (HL)
  • Certificate of Calibration (Long Form) showing traceability to NIST included
  • Check Shim provided to verify accuracy
  • Conforms to national and international standards including ISO and ASTM

Versatile

  • Universal gauge accepts all PosiTector SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes
  • 30º angle interchangeable probe tip available for special surface profile applications
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

Powerful

  • The Replica Tape Reader Continually displays/updates average, standard deviation, min/max thickness and number of surface profile readings
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive -stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • PosiSoft.net account – a free web-based application offering secure storage of thickness readings
  • PosiSoft 3.0 – desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.
  • PosiSoft Mobile -(Advanced models only) – access readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers
  • Screen Capture – record and save image into USB flash memory for record keeping and review
  • Every stored measurement is date and time stamped.
  • Software updates via web keep your gauge current

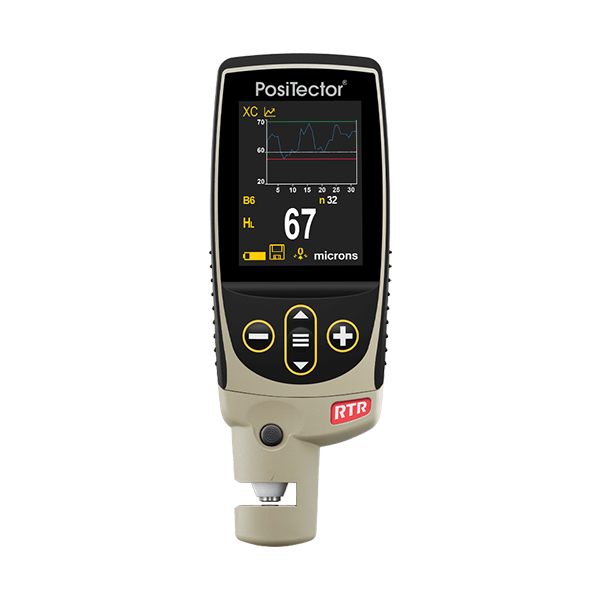

Advanced Models

Includes ALL features as shown above plus…

  • Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

PosiTector RTR Specifications

RTRH Specs
Probe Interchangeability
https://www.dftinstruments.co.uk/wp-content/themes/salient/css/fonts/svg/basic_spread_text_bookmark.svg

Literature

Find useful instruction manuals and quick guides for the PosiTector RTR

https://www.dftinstruments.co.uk/wp-content/themes/salient/css/fonts/svg/basic_question.svg

FAQs

You will discover some really helpful frequently asked questions here and may find the answer to your query

PosiTector RTR H
https://www.dftinstruments.co.uk/wp-content/themes/salient/css/fonts/svg/software_add_vectorpoint.svg

PosiSoft Software

Learn about the DeFelsko PosiSoft software to assist with your Replica Tape Reader gauge

https://www.dftinstruments.co.uk/wp-content/themes/salient/css/fonts/svg/arrows_square_plus.svg

Accessories

All the useful accessories to accompany your PosiTector RTR can be found here.

Buy Replica Tape Reader

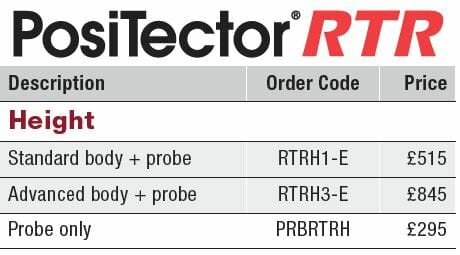

RTR Buying Options (inc VAT)
