PosiTest Adhesion Tester Specifications

*supplied with PosiTest AT **requires 50mm kit
Warranty: 2 Years

Conforms to national and international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others

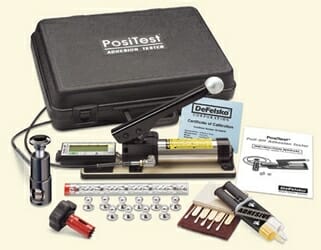

At Complete Kit

PosiTest AT (manual model kit shown above)

Adhesion
Strength
Dolly Size Max Pull-Off Pressure
10 mm 10000 psi 70 MPa
14 mm 6000 psi 40 MPa
20 mm* 3000 psi 20 MPa
50 mm** 500 psi 3.5 MPa

Both Kits include:

  • Adhesion tester with digital display
  • 20 mm aluminum test dollies (20)
  • Abrasive pad
  • Cutting tool
  • Adhesive with mixing sticks and palettes
  • Cotton swabs
  • Instruction booklet
  • Certificate of Calibration traceable to NIST
  • Instructional Video
  • Sturdy, lightweight carrying case
  • Two-year warranty
  • Shoulder strap (AT-A only)

Weight of Kit

(with case) :
12 lbs / 5.5 kg

Carrying Case Dimensions:

L – 17 in / 43 cm
W – 13 in / 33 cm
H – 6 in / 15 cm

Dollies

Aluminum Test Dollies Power:

  • AT Manual – 2 AAA batteries
  • AT-A Automatic – Built-in rechargeable NiMH batteries with recharger/AC power supply. (perform over 200 pull tests per charge)
