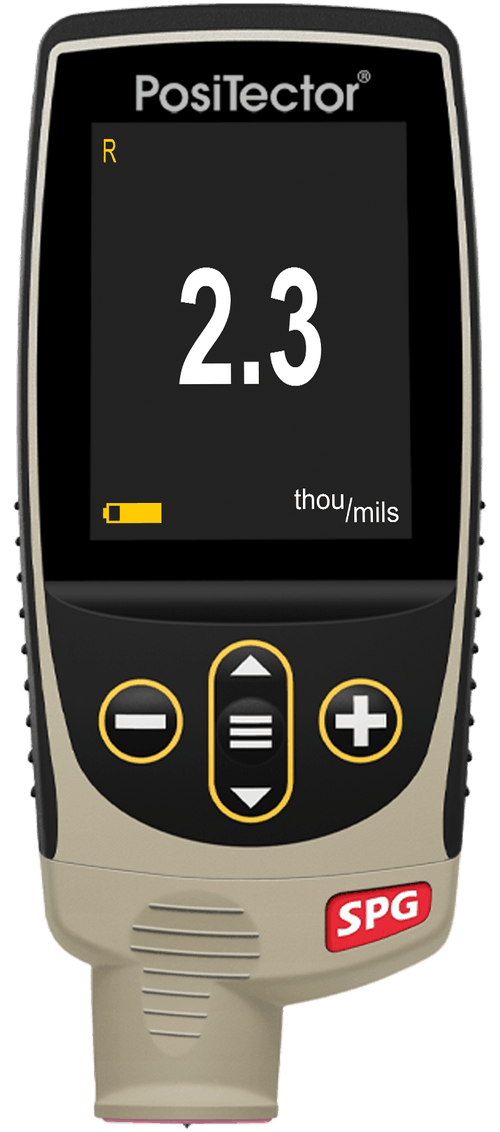

PosiTector SPG

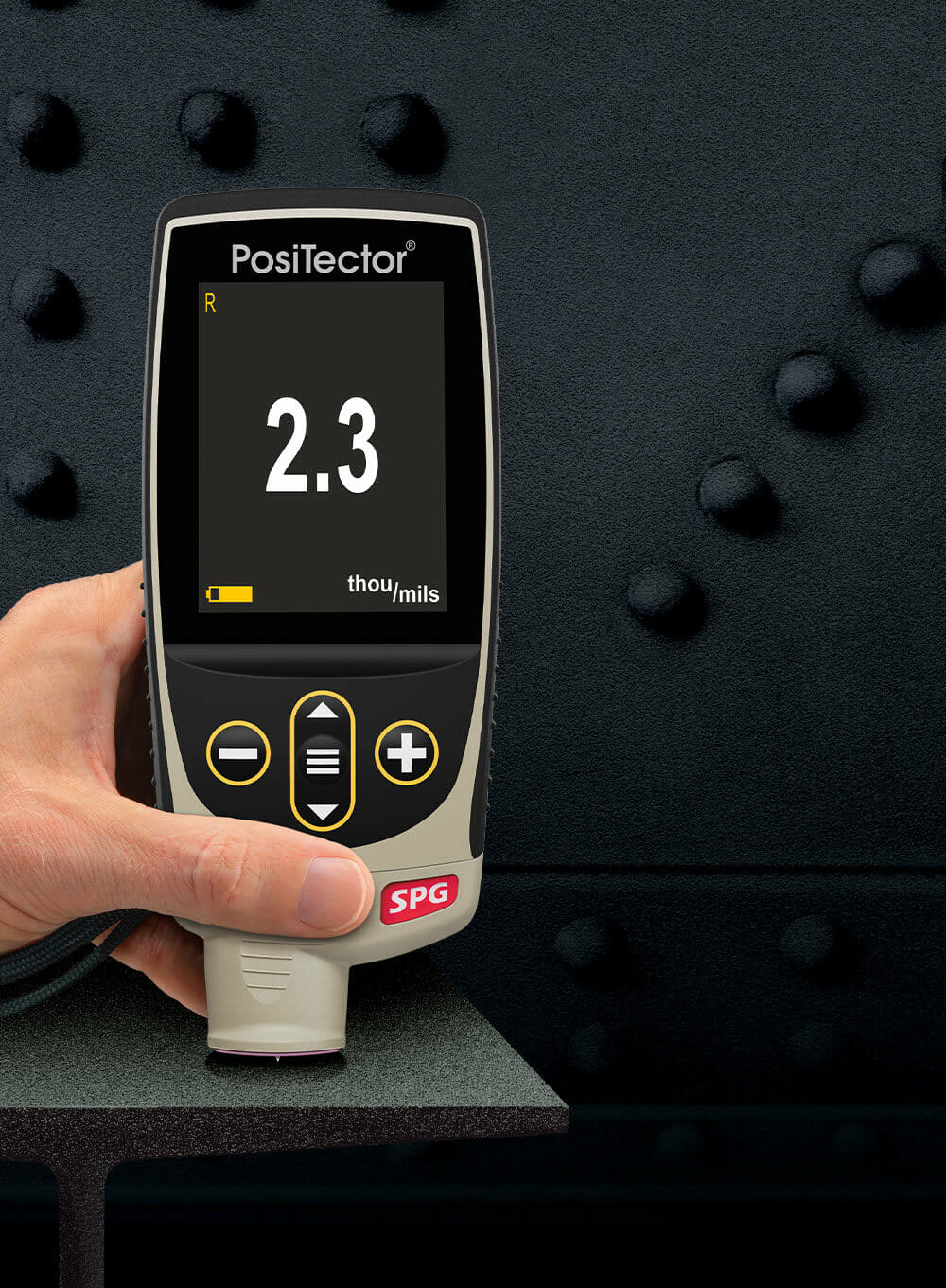

The PosiTector SPG Surface Profile Gauge measures and records peak to valley surface profile heights. Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others.

  • NEW Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable
  • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
  • Fast measurement rate of over 50 readings per minute—for quickly measuring large surfaces
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)
surface profile gauge

Simple

  • Fast measurement rate of over 50 readings per minute—ideal for quickly and accurately measuring large surfaces

  • NEW Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation

  • NEW On-gauge help explains menu items at the touch of a button

  • RESET feature instantly restores factory settings

Durable

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

  • NEW Ergonomic design with durable rubberised grip

  • Rugged, indoor/outdoor instrument – ideal for field or shop use

  • Shock-absorbing protective rubber holster for added impact resistance

  • 2 year warranty on gauge body AND probe

Accurate

  • Built-in temperature compensation ensures measurement accuracy

  • Certificate of Calibration showing traceability to NIST included

  • Glass Zero Plate and metal shim included

  • Conforms to national and international standards including ISO and ASTM

Versatile

  • PosiTector body accepts all PosiTector SPG, RTR, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gauge to a coating thickness gauge, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gauge

  • 30º angle interchangeable probe tip available for special surface profile applications

  • Cabled probes available for blasted steel, textured coatings, and concrete profile

  • NEW Auto rotating display with Flip Lock

  • Selectable display languages

  • Mils/Microns switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring

  • NEW Screen Capture—save 100 screen images for record keeping and review

  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits

  • NEW Instant-on feature quickly powers up the gauge if recently powered down

  • NEW Up to 30% longer battery life

  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included

  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.

  • Every stored measurement is date and time stamped

  • Includes PosiSoft Software for viewing and reporting data

  • Software Updates via web keep your gauge current
